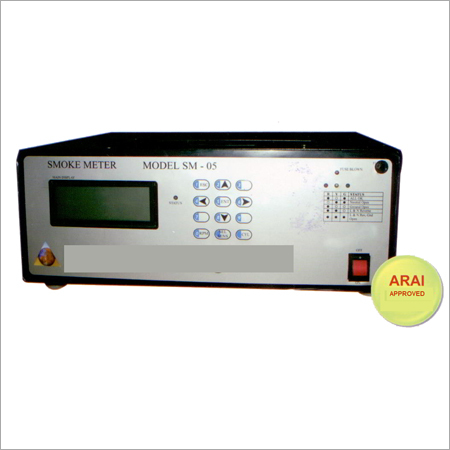

Diesel Smoke Meter

Diesel Smoke Meter
Diesel Smoke Meter
Product Code : SM 05
Product Description

We are a prestigious manufacturer of Diesel Smoke Meter. This specific appliance has wide applications in automobile test station, manufacturing unit of automobile parts, automobile repair station and environment protection section. Our Diesel Smoke Meter consists of advanced part like alarm for K overvalue, digital time display system and storage facility of measurement result.  As part of our systematic working procedure, we carefully check flawless nature of our finished products by different parameters. We are offering this premium quality product at competitive price range.

Technical Specifications:

Principle

Partial Flow Opacity meter based on folded geometry technology

Light Source

Green LED of 5mm diameter

Detector

Photocell

Measurement

Opacity in HSU and Light Absorption Coefficient in k

Measuring Range

HUS = 99.9%, k = 9.99

Resolution

0.1/m

Linearity

0.1/m

Drift

Zero: 0.1/m, Span: 0.1/m

Repeatability

0.1/m

Response time

<0.3 seconds

RPM Measurement

4 source ranging from 200-9999 Rpm (+/-10 Rpm)

  • Piezo

  • Vibration Tachometer

  • Battery Tachometer

  • OBD

Engine Temperature

2 Source ranging from 0-150oC (+/-1oC)

  • Thermocouple

  • OBD

Warm-up Time

<7 Minutes

Operating Conditions

Humidity

90% at 50oC non condensing

Temperature

0 to 50oC

Storage Temperature

-10 to 65oC

Supply voltage

140 – 240V 50Hz

Power Consumption

Heater ON

110W

Heater OFF

30W

Instrument Case

Aluminium body

Dimensions

Length: 480mm, Width: 364mm, Height: 190mm

Weight

10.26 Kg

Sampling Probe

Corrosion resistance flexible stainless steel probe

System Display

20x4 Alphanumeric Jumbo LCD (Sunlight Readable)

Keyboard

12 (3x4) Membrane keys

Printer:

Internal

24 character dot matrix micro printer

External

Standard RS232 Serial Printer set to 9600 Baud

P.C. interface

High Speed USB (Simulated Serial Port @ 9600 Baud)
Type-A Female Connector (Rear)
3mt Type-A to Type-A cable provided

Remote Unit

Display

20x4 Alphanumeric LCD (Sunlight Readable)

Keyboard

12 (3x4) Membrane keys

Indicators

Power Mode, Signal Strength, Status

Interface

Wired – 10m four core cable
Wireless – Operating Distance = 50m radius

Power

Wired – From main system
Wireless – 4 x AA Batteries

Dimension

Length: 145mm, Width: 90mm, Thickness: 32mm

Weight

385gm


Drop-proof Rubberized Casing
